Index Products Metal Waterproof Cable Gland (HSM Series)

NL-B Colorful Cable Gland

NL-B Nylon Colorful Cable Gland

Nylon A-type Divided Body cable gland  product color can be customized according to your requirements. is a high-performance cable sealing accessory mainly used for sealing the joints of wires and cables, which can effectively prevent moisture, dust, and other external environments from corroding and damaging the cable. The sealing sleeve is made of nylon PA66 material, which has excellent physical and chemical properties and is widely used in industrial control, aerospace, mechanical manufacturing, automotive manufacturing, electronic information and other fields. The cable gland is designed with a split structure, which is easy to install and can be easily installed outside the cable, saving installation time and cost. At the same time, the sealing sleeve has very high fire resistance, has passed UL fire certification, is of reliable quality, and fully meets environmental requirements in Europe and the United States. This enables it to operate reliably under various harsh working and environmental conditions.

In summary, the nylon A-type split cable gland has various advantages such as easy installation, waterproof, strong tensile resistance, and high temperature resistance, fully meeting the application requirements of cable glands. It is widely used at the joints of various wires and cables to protect cables and extend their lifespan.

Quotation
Material
Nylon PA66
IP Grade
IP68
Operating temperature
Static -40°C to 120°C
Thread specifications

Metric threads, PG threads, G(PF) threads, NPT threads;


Product Features:


Name:Nylon Cable Gland

ThreadMetric:PG,G(PF) and NPT

Protection degree:IP68-10

Working temperature:-40℃ to 100℃, instantaneous heat resistance up to 120 ℃. -20℃ to 80 ℃ in dynamic, instantaneous heat resistance up to 100℃.

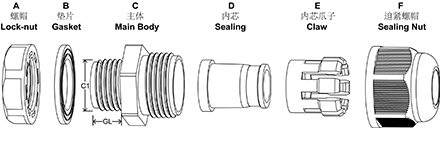

Features:The claw and seals of excellent design.Sealling nut have a "click" sound and re-open resistance design ,can hold cable firmly and have a wider cable range .Resistant to salt water,weak acid,alcohol,oil,grease and common solvency.

Materials:UL approved Nylon PA66(Flammability UL94V-2)for A,C,E,F parts,UL 94V-0 nylon PA66 material can be customized;EPDM for B,D parts,can customize other rubber.

Color:Black & light gray color in standard .Other colors can be customized .

Note:Customization is acceptable. Welcome to inquire.
