90° NL-Twist resistant Nylon Cable Gland

90° NL-Twist resistant Nylon Cable Gland

The product features a spiral anti-torsion structure and is primarily used in hand-held or mobile devices to prevent excessive twisting of the cable outlet, greatly reducing operational risks. The design includes clamping rings and clamping claws, along with a tightening nut equipped with a loosening clip. When tightened, it produces a "click" sound and prevents the cable gland from loosening, ensuring a secure fixation of the cable and expanding the clamping range.
Quotation


Material
Nylon PA66
IP Grade
IP68
Operating temperature
Static -40°C to 120°C
Thread specifications

Metric threads, PG threads, G(PF) threads, NPT threads;



Product Features:

Thread Specification : Metric thread, PG thread, G(PF) thread (customizable)

Waterproof Rating    : IP68-10
Operating Temperature: Static -40°C to 100°C, or momentarily heat resistant up to 120°C. Dynamic -20°C to 80°C, or momentarily heat resistant up to 100°C.

Product Features:
The product features a spiral anti-torsion structure and is primarily used in hand-held or mobile devices to prevent excessive twisting of the cable outlet, greatly reducing operational risks. The design includes clamping rings and clamping claws, along with a tightening nut equipped with a loosening clip. When tightened, it produces a "click" sound and prevents the cable gland from loosening, ensuring a secure fixation of the cable and expanding the clamping range.

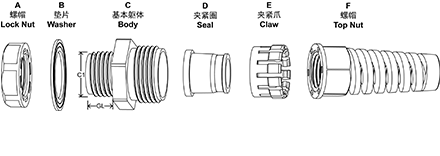

Product Material: Parts A, C, E, F are made of UL-approved nylon PA66 (Fire rating: UL94V-2), and can be customized with UL-approved fire-resistant nylon PA66 material with a fire rating of 94V-0. Parts B and D are made of ethylene propylene diene monomer (EPDM) weather-resistant rubber and can be customized with cold-resistant, high-temperature resistant, and chemical-resistant rubber materials.

Color: Black, Gray, Customizable for other colors
