NL-Spiral metal Cable Gland

NL-Spiral Nylon waterproof rubber Cable Gland

The product adopts a spiral anti-torsion structure and is mainly used in hand-operated or mobile devices to prevent excessive twisting of the outlet, greatly reducing the risk of operation. The design of the clamping ring and clamping claw, together with the tightening nut with a loosening clip, produces a "click" sound when tightened and prevents it from opening, effectively fixing the cable and expanding the clamping range of the cable.


Quotation
Material
Nylon PA66
IP Grade
IP68
Operating temperature
Static -40°C to 120°C
Thread specifications

Metric threads, PG threads, G(PF) threads, NPT threads;


Product Features:

Thread Specification : Metric thread, PG thread, G(PF) thread (customizable)
Waterproof Rating    : IP68-10
Operating Temperature: Static -40°C to 100°C, or momentarily heat resistant up to 120°C. Dynamic -20°C to 80°C, or momentarily heat resistant up to 100°C.


Product Features:
This product adopts a spiral anti-torsion structure and is mainly used in hand-operated or mobile devices to prevent excessive twisting of the outlet, greatly reducing the risk of operation. The design of the clamping ring and clamping claw, together with the tightening nut with a loosening clip, produces a "click" sound when tightened and prevents it from opening, effectively fixing the cable and expanding the clamping range of the cable.

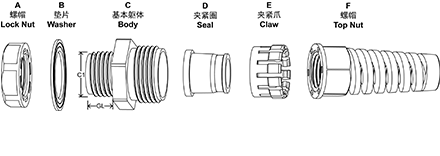

Product Material: Parts A, C, E, F are made of UL-approved nylon PA66 (Fire rating: UL94V-2), and can be customized with UL-approved fire-resistant nylon PA66 material with a fire rating of 94V-0. Parts B and D are made of ethylene propylene diene monomer (EPDM) weather-resistant rubber and can be customized with cold-resistant, high-temperature resistant, and chemical-resistant rubber materials.
