NL-90° Nylon Elbow Cable Gland
NL-90° Nylon Elbow Cable Gland
The NL-90° multiple nylon elbow gland head is a cable protection accessory with a wide range of applications. It is widely used in various fields such as industrial control, electronic equipment, automotive manufacturing, construction, aerospace, and medical equipment. Due to its high quality, fire resistance, and waterproof performance, this cable gland not only protects the joints but also effectively extends the service life of the cable, improves equipment reliability, and provides users with a more stable working environment and production efficiency.
Quotation
Material
Nylon PA66
IP Grade
IP68
Operating temperature
Static -40°C to 120°C
Thread specifications
Metric threads, PG threads, G(PF) threads, NPT threads;
Product Features:
Technical Specifications:Thread Specification: Metric thread, PG thread, G(PF) thread (customizable)Waterproof Rating: IP68-10
Operating Temperature: Static -40°C to 100°C, or momentarily heat resistant up to 120°C. Dynamic -20°C to 80°C, or momentarily heat resistant up to 100°C.
Product Features:
This product is designed for a 90-degree elbow. It ensures that the sealing characteristics of the cable entering the enclosure are fully maintained and continued.
The design of the clamping ring and clamping claw, together with the tightening nut with a loosening clip, produces a "click" sound when tightened and prevents slipping.

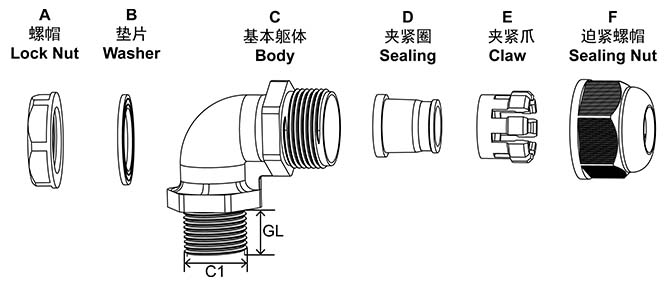

Product Material:
Parts B and D are made of ethylene propylene diene monomer (EPDM) weather-resistant rubber and can be customized with cold-resistant, high-temperature resistant, and chemical-resistant rubber materials.
