HSM-F Spiral metal Cable Gland

HSM-F Spiral metal Cable Gland

This intelligent extension of the spring coil, extending it to obtain a similar protective effect of casing, can not only obtain the effect of waterproof and tensile, but also successfully complete the dangerous angle of preventing the wire from over bending. The nickel plated material can resist corrosion, acid and alkali. The new joint of this new concept can be fully applied to all the field of outgoing line.
Quotation
Material
Brass Nickel/stainless steel
IP Grade
IP68
Operating temperature
Static -40°C to 100°C
Thread specifications

Metric threads, PG threads, G(PF) threads, NPT threads;

This intelligent extension of the spring coil, extending it to obtain a similar protective effect of casing, can not only obtain the effect of waterproof and tensile, but also successfully complete the dangerous angle of preventing the wire from over bending. The nickel plated material can resist corrosion, acid and alkali. The new joint of this new concept can be fully applied to all the field of outgoing line.

Working temperature:Static:-40℃~+100℃ Short time up to +120℃;Dynamic:-20℃~+80℃ Short time up to +100℃

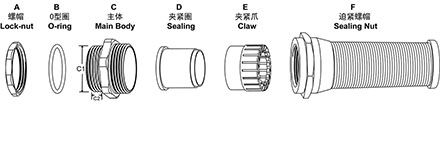

Materials:high-grade copper alloy nickel plating material for A ,C & F parts, weather resistant silicone for B & D parts

Protection level:in the range of the specified bayonet, use the O type seal ring to tighten the fastening head to IP68-5Bar.

Claw  :PA66(Nylon),UL94-V2
