NL-H Cable Gland

Multiple-Hole 2-8 Holes Waterproof Nylon Cable Gland

Multiple-Hole nylon cable gland is a commonly used cable protection accessory, mainly used to protect cable joints and prevent the impact of water, dust, and vibration on the joints. It is usually made of nylon PA66 material and can pass UL fire certification to ensure its excellent quality and quality. The specific technical specifications of the cable gland are as follows: Firstly, it is made of nylon PA66 material, which has advantages such as good stability, good electrical insulation performance, wear resistance, ozone aging resistance, UV resistance, and temperature stability. It also has a compact structure and is not prone to wear and deformation.

Based on the above advantages, the Multiple-Hole nylon cable gland is an excellent cable protection accessory with a wide range of applications. It is widely used in various fields such as industrial control, electronic equipment, automotive manufacturing, construction, aerospace, medical equipment, etc. Due to its multiple excellent properties such as high quality, fire resistance, and waterproofing, this cable gland not only protects the joints, but also effectively extends the service life of the cable, improves equipment reliability, and brings more stable working environment and production benefits.

Quotation
Material
Nylon PA66
IP Grade
IP68
Operating temperature
Static -40°C to 120°C
Thread specifications

Metric threads, PG threads, G(PF) threads, NPT threads;

Product Features:


Name:Multiple-Hole Cable Gland

ThreadMetric:PG,G(PF) and NPT

Protection degree:in the specific cable range, the using of the O-ring helps tighten head, so that reach to IP68-10 bar pressure.

Working temperature:-40℃ to 100℃, instantaneous heat resistance up to 120 ℃. -20℃ to 80 ℃ in dynamic, instantaneous heat resistance up to 100℃.

Features:This product is designed for outlet hole type. This function can integrate multiple cable wires into one outlet hole at the same time, which can not only greatly reduce the construction time, reduce the cost, but also reduce the space occupied by the outlet

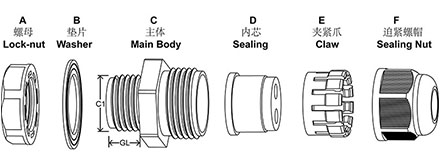

Materials:UL approved Nylon PA66(Flammability UL94V-2)for A,C,E,F parts,UL 94V-0 nylon PA66 material can be customized;EPDM for B,D parts,can customize other rubber.

Claw :PA66(Nylon),UL94-V2

Hermetic seal :NBR

O-Ring :NBR

Color:Black & light gray color in standard .Other colors can be customized .

Note:Customization is acceptable. Welcome to inquire.

NoteFor more holes, please specify the relevant parameters, such as: model specification, the cable diameter, number of holes and so on.
