NY-B cable gland

Nylon Breathable cable gland

Nylon breathable cable gland is a high-quality and reliable cable gland made of high-quality nylon PA66 material. This sealing sleeve has good waterproof performance, quickly restoring breathability after contact with liquid, and has the advantage of high breathability, which can effectively protect cables and connectors from the influence of humid environments. At the same time, this product also combines the characteristics of inert singularity, chemical resistance, and UV resistance, ensuring the long-term use of the sealing sleeve in harsh environments.

Nylon breathable cable gland is a high-performance product suitable for industries such as industrial automation, electronics, solar panels, LED lighting, and photovoltaic cells. It not only has good waterproof performance, but also has high-performance features such as dust prevention, gas resistance, and electromagnetic interference resistance, greatly improving the reliability of the product. It plays an important role in power supply, communication, and control systems and is an important and indispensable accessory.

Quotation
Material
Nylon PA66
IP Grade
IP68
Operating temperature
Static -40°C to 120°C
Thread specifications

Metric threads, PG threads, G(PF) threads, NPT threads;


Product Features:


Name:Nylon Cable Gland

ThreadMetric:PG,G(PF) and NPT

Protection degree:IP68-10

Working temperature:-40℃ to 100℃, instantaneous heat resistance up to 120 ℃. -20℃ to 80 ℃ in dynamic, instantaneous heat resistance up to 100℃.

Features:This connector has a ventilation function. Allow air to pass through, prevent moisture and dust from passing through, maintain a balanced pressure on the product casing, and avoid outdoor lighting or condensation on the casing. Easy to use and install. Customize waterproofing levels based on water depth and breathability. The use of this breathing cable gland helps to extend its service life.

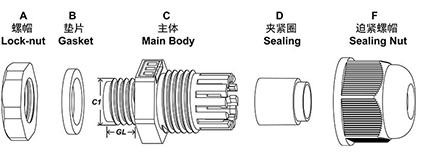

Materials:UL approved Nyion PA66(Flammability UL94V-2)for A,C,F parts,UL 94V-0 nylon PA66 material can be customized; EPDM for B,D parts,can customize other rubber.

Color:Black & light gray color in standard .Other colors can be customized .

Note:Customization is acceptable. Welcome to inquire.
