HSMS Cable Gland

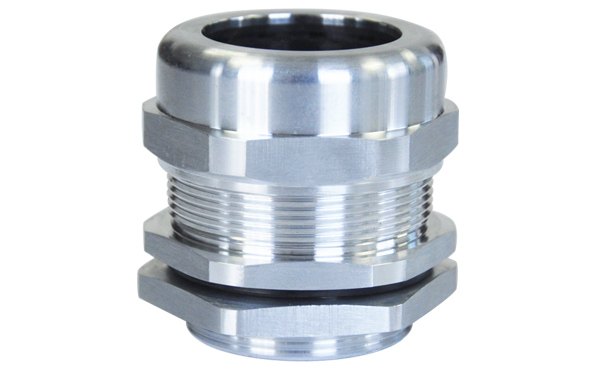

HSMS Stainless Steel Gland
HSMS stainless steel gland is a mechanical device for cable entry, made of high-quality stainless steel. The sealing material is made of UL-approved nylon PA66 (fire rating UL94V-2) or butyl or EPDM rubber. It is widely used in various industries for electrical, instrumentation, and automation systems with cables and wires. The gland head can be used for various types of power, control, instrumentation, data, and telecommunication cables. As a sealing and termination device, it ensures that the characteristics of the cable entering the enclosure can be fully maintained and prolonged.
Material
Brass Nickel/stainless steel
IP Grade
IP68
Operating temperature
Static -40°C to 100°C
Thread Specifications
Metric threads, PG threads, G(PF) threads, NPT threads;
Product Features:
1. The designed clamping molds and rubber parts have a wide clamping range, strong tensile strength, and cause no damage to cables or devices. They are suitable for explosion-proof environments, resistant to mechanical impact or long-term outdoor exposure.
2. No disassembly is required, cables can be inserted directly, and then easily tightened, saving time.
3. Its precise clamping technology makes the wire rope fixing have strong tensile strength and good airtightness, with a continuous sinking capacity of 50m.
4. The stainless steel cable sealing bushing has good durability, stability, and corrosion resistance, and can provide good strength and corrosion resistance in harsh environments.
5. Suitable for most applications where cables need to be quickly and reliably secured, such as motion control, process control, robotics, etc.
6. This product can also be used with armored cables to achieve electromagnetic compatibility and anti-electromagnetic wave purposes.
